Mapping Packages

If you carried out the steps in the Quick Start section, we can now map our packages by running the following command:

nanoforge graph

This will create a nanoserve_dep_graph.png file in the root of the project which will show the dependencies of all the nanoservices in the project like the example below:

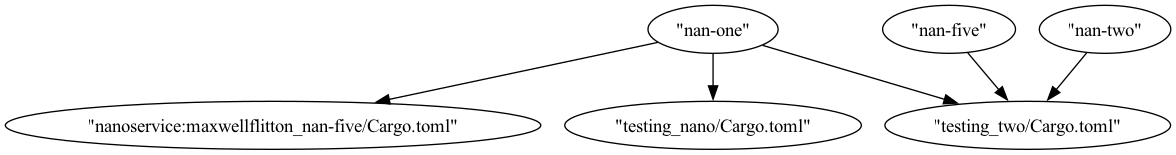

Having multiple workspaces referencing nanoservices will result in a more complex dependency graph, such as the example below:

Here we can see that the two workspaces testing_nano and testing_two rely on some nanoservices. However, we can also see that the nan-five nanoservice also relies on the nan-one nanoservice. On the basis of this observation, we can see that nanoservices can also reference and build off each other. That said, it is advisable to keep this to a minimum as it can lead to circular dependencies.

Rely on the nanoforge graph command to see the dependencies of the nanoservices in your project.
